Leak detection that finds the break before the wall comes open

How a hidden leak announces itself

Very few leaks stay genuinely silent. They signal, and the signals are consistent enough to be worth reading before anyone is called out.

• An unexplained bill increase. The most reliable early indicator there is, and the one most often dismissed. A step change in usage with no change in habits means water is going somewhere.
• Warm spots on a floor. A hot-water line leaking under a slab heats the concrete above it. On a tile or vinyl floor this is often felt underfoot before anything else appears.
• Sound with everything closed. A faint hiss or trickle audible at night, when the building is quiet, from a wall or below a floor. Pressurised water escaping through a small opening makes a specific and persistent noise.
• Staining that returns after painting. A stain that comes back through fresh paint is an active source, not a historical one.
• Musty smell without visible damp. Cavity moisture, usually weeks old by the time it is noticeable.
• Pressure that has quietly dropped. Gradual, easy to normalise to, and a genuine sign of loss somewhere in the system.
• Foundation cracking or settlement. A buried service line leaking under or near a foundation washes out supporting soil. Rare, serious, and worth ruling out when other signs coincide.

Why the stain is not above the leak

The most expensive assumption in leak repair is that water appears where it escapes. It rarely does, and cutting where the stain is remains the commonest way to open a ceiling and find nothing.

Water escaping a pipe in a joist bay runs along the pipe until something interrupts it, then along the joist, then down a stud, then across the top plate, then onto whatever horizontal surface it meets first. In a balloon-framed pre-war building, and a great many Chicago-area two-flats and greystones are balloon-framed, stud cavities run uninterrupted from the sill to the attic, so water from a second-floor leak can appear at the basement ceiling with no sign of anything in between.

Suspended ceilings, recessed light housings, and duct runs all redirect it further. A leak above a bathroom can appear three rooms away simply because that is where the first downward path presented itself.

This is the entire justification for instrument-based detection. The visible evidence tells you a leak exists. It does not, on its own, tell you within several metres where it is.

The detection methods and what each one is for

Thermal imaging

An infrared camera reads surface temperature. Wet material conducts and evaporates differently from dry, so a damp plume behind plaster shows as a cool region with a characteristic soft-edged shape; a hot-water leak shows as a warm line. It is fast, entirely non-invasive, and excellent for bracketing an area.

Its limits matter. It shows moisture, not pipes, so it maps the plume rather than the opening. It needs a temperature differential to work, which makes it far more effective in winter here than in mild weather. And it reads surfaces, so insulation, tile, and thick plaster all mute the signal.

Acoustic detection

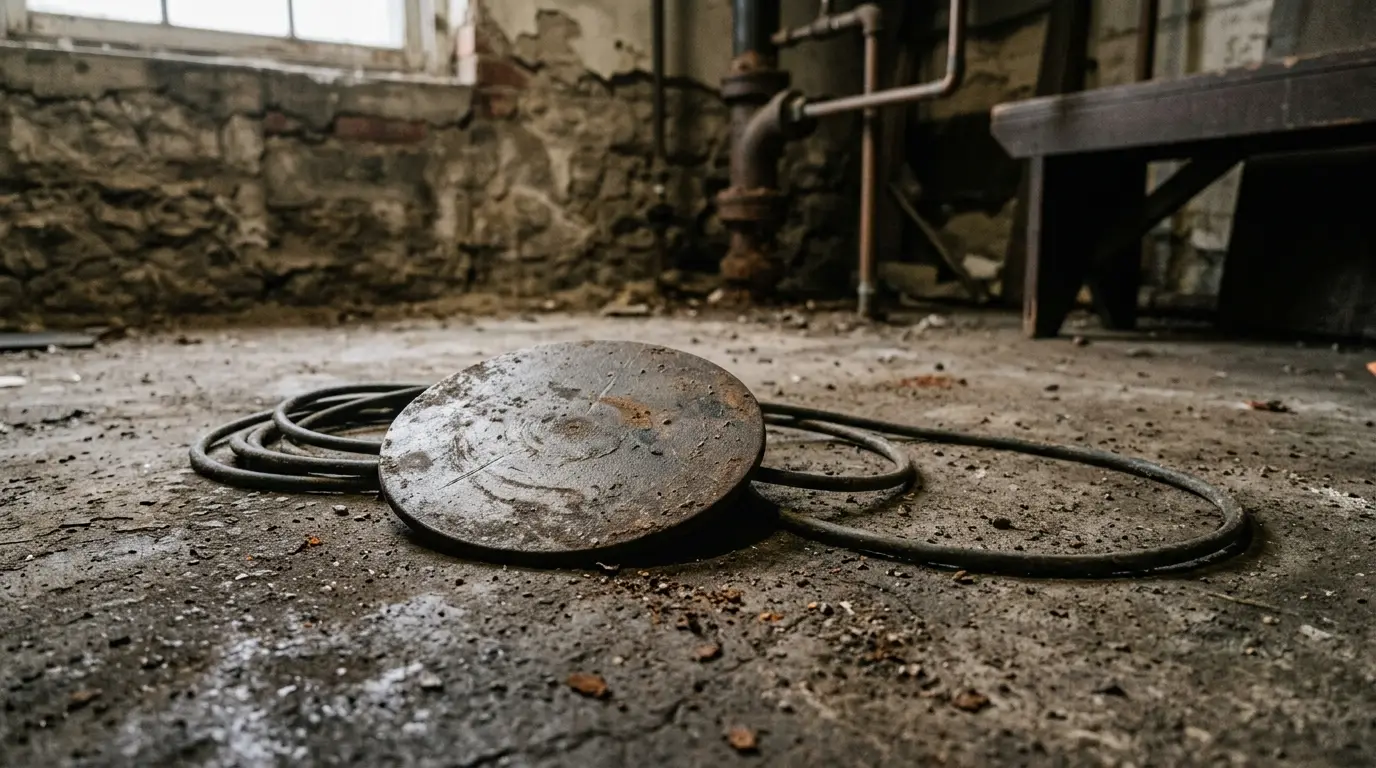

Pressurised water escaping through a small opening generates sound in a fairly narrow frequency band. Ground microphones and contact probes filter for it, and the location is found by comparing intensity at multiple points along a run. This is the method that produces a genuinely tight fix on a supply leak, often within a foot.

It requires the system to be pressurised, so it does not work on drains, and it struggles against background noise: traffic, a running furnace, a busy building. It also works far better on metal pipe than plastic, because plastic damps the signal quickly.

Pressure isolation and decay testing

Less glamorous and often the most informative. The system is isolated in sections and each is pressurised and watched for decay. It answers the question that matters before location does: which branch, hot or cold, upstairs or down. Narrowing to one branch before deploying any camera saves more time than any single instrument.

Tracer gas

An inert hydrogen-nitrogen mix is introduced into a drained line; it escapes through the opening and is picked up at the surface with a sensitive detector. It is the method for very slow leaks, plastic pipe, and buried lines where acoustic gets nothing, and it works through concrete and soil.

Moisture mapping

Pin and pinless meters map the extent of saturation across a surface. This does not find the source, but it defines the boundary, which determines how much material has to come out, and later whether it has actually dried.

Under-slab and buried leaks

Slab-on-grade construction is less dominant here than in warmer regions, but it is common in post-war ranches, additions, garages, and a great deal of commercial building. When a supply line under a slab fails, the detection problem changes character.

The signals are distinctive: a persistently warm patch of floor, the sound of running water with everything closed, unexplained damp at the base of a wall, and a meter that will not stop moving. Because the concrete spreads both heat and moisture, none of them indicate position accurately.

Location combines acoustic work on the pressurised line with tracer gas where the pipe is plastic or the leak is slow. Once located, there are three routes: break the slab at that point and repair, abandon the line and reroute overhead through the building, or re-run the whole line. Rerouting is frequently the better economics in an older building, because a leak under the slab in a system of that age is unlikely to be the last one, and opening concrete twice costs more than not opening it at all.

Buried service lines between the b-box and the building are their own case. Wet or unusually green ground over the run in dry weather, a meter turning with the house isolated, and pressure that recovers slowly after use all point there. Detection is by acoustic and tracer methods along the line, and the answer is often replacement rather than a spot repair, a line that has failed once in a corrosive soil is telling you about its whole length.

The meter test you can run yourself

Fifteen minutes, no tools, and it frequently saves a call.

Close everything. Every tap, the dishwasher, the washing machine, the ice maker, any humidifier plumbed into the supply, and the irrigation controller. Everything.

Read the low-flow indicator. Most meters have a small triangular or star-shaped dial that responds to very low flow. Watch it for two minutes. Any movement at all means water is leaving the system.

Take a full reading, wait, read again. Note every digit, leave the building undisturbed for an hour, and read again. A changed number with nothing running is conclusive.

Then isolate. Close the main valve into the house and repeat. If the meter still moves with the house isolated, the leak is between the meter and the building, a buried service line. If it stops, the leak is inside.

That last step is the valuable one. Knowing which side of the wall the problem sits on before anyone is dispatched changes what equipment arrives and, frequently, who owns the repair.

Opening plaster without wrecking it

A detail that matters disproportionately in this region, because so much of the housing stock is plaster and lath rather than drywall, and plaster does not patch invisibly.

Drywall tolerates a clean rectangular cut and a taped patch that disappears under paint. Plaster does not: it is a three-coat system over wood lath, it is brittle, and vibration from a reciprocating saw cracks it well beyond the cut line. A careless opening in a plaster ceiling regularly costs more to make good than the plumbing repair underneath it.

Practically, that means scoring the perimeter before cutting, cutting between lath rather than through it wherever possible, working with a multi-tool rather than a recip saw, and sizing the opening for the repair rather than for comfort. It also means the value of precise detection is much higher here than in a house built in 1995, the difference between one twelve-inch opening and three exploratory ones is real money in a plaster building.

Where a ceiling is likely to need future access, an access panel is a legitimate and honest outcome. Better a neat panel that was discussed in advance than a patch that will be cut open again in two years.

What detection costs and what it saves

Detection is priced as its own scope, separately from the repair, and that separation is deliberate: it is the only way the number stays honest, because a company that bundles it has an incentive to find something.

The cost scales with method and access. A meter test and a walk with a thermal camera is a short visit. Acoustic work across a whole building, tracer gas on a buried line, or a full sectional pressure test is a half-day operation with specialised equipment.

What it saves is more variable and usually larger. Every exploratory opening carries a cutting cost, a patching cost, a finishing cost, and on plaster a matching cost that is genuinely difficult to achieve. Three guesses in a plaster ceiling costs multiples of one located cut. On a slab, the arithmetic is starker still, concrete opened in the wrong place is not recoverable.

The other saving is duration. A leak located in week one is a repair. The same leak found in month six is a repair plus wet insulation, plus rotted framing, plus remediation.

Drying, and knowing when it is dry

Finding and fixing the leak ends the plumbing job and leaves the building job unfinished. What was wet has to be dried, verified, and only then closed.

Wet cavity insulation comes out entirely. It does not dry in place. It holds water against framing and sheathing for weeks and it loses its thermal value permanently once saturated. Wet drywall wicks upward well past the visible stain line, and a moisture meter finds the real boundary, which is routinely a foot higher than it looks.

Then directed airflow into the open cavity, with a dehumidifier if the season calls for one. Midwest winter indoor air is dry, which helps considerably; a summer leak in a humid basement needs mechanical drying to get there at all.

The wall closes when a meter says the framing is dry, not when it looks dry. Closing early is the single most common way a completed plumbing repair turns into a remediation project the following spring, and by then the evidence of what caused it is sealed inside the wall.
